Signature Features

 Powerful Performance and Low Noise
 •  Powerful 630 CFM* ventilation circulates air to remove odors
quickly, operating at 7.5 sones on Boost fan speed setting.
 * When using Boost mode. Hood arrives pre-programmed to 390 CFM.

LED Bar Light
•  Illuminate your cooktop with dimmable LED lighting.

 Wi-Fi Connectivity
 •  Control your hood  by smartphone through the SmartThings App.

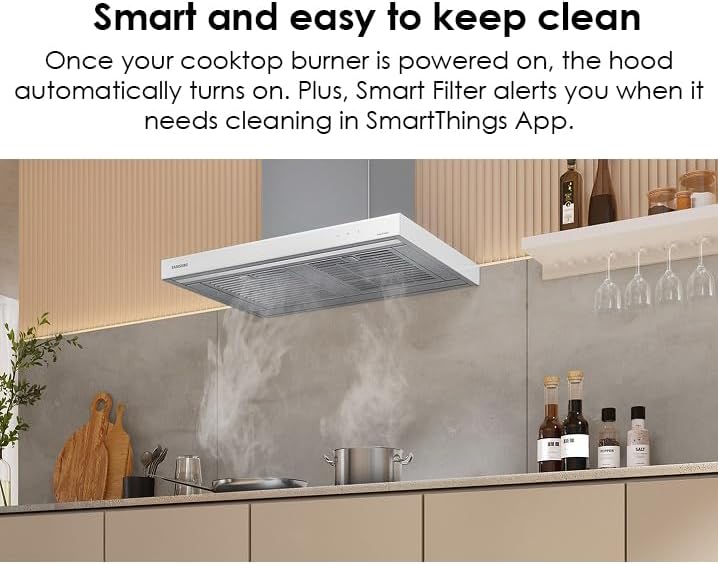

Once your cooktop burner is powered on, the hood turns on.*

 * Compatible when connected with Wi-Fi enabled built-in cooktops and ranges.
Available when it is set using the "Automations" option in the SmartThings App! *

 Features

 •   52 dBA (1.0 Sone) in low mode / 71 dBA
(7.5 Sones) in Boost Mode
 •   4 Fan Speeds, Including Booster

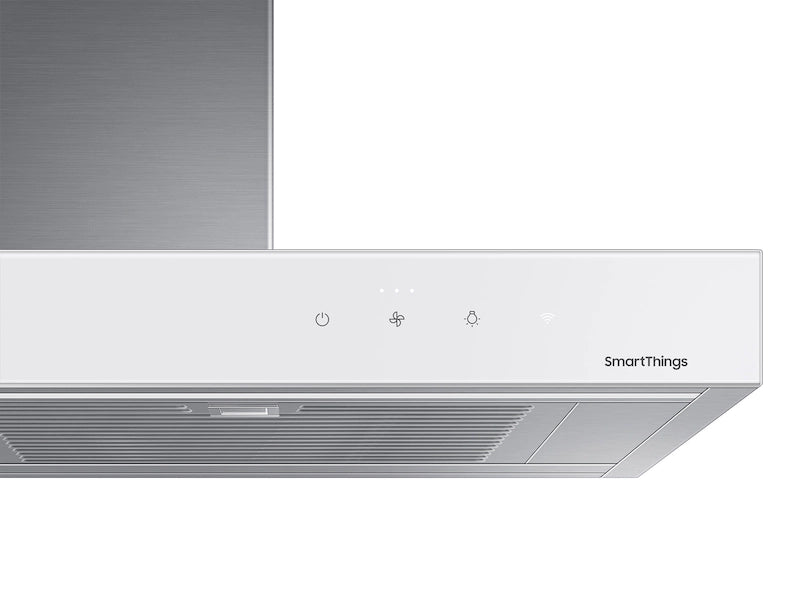

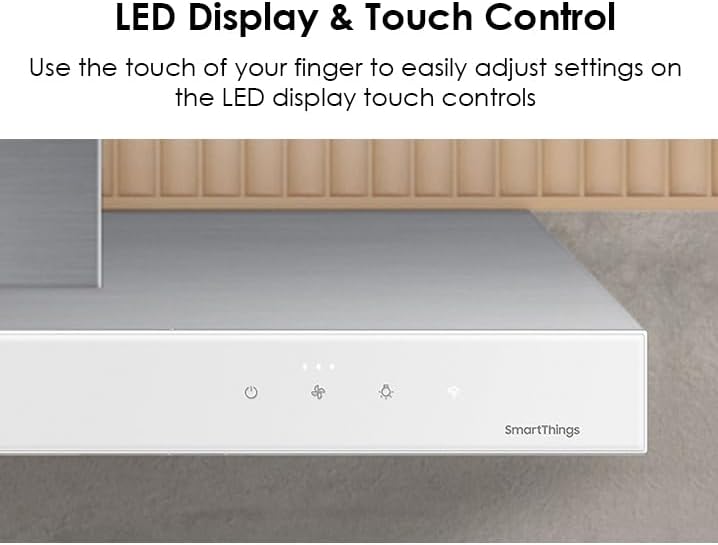

 •   LED Display/ Touch Controls
 •   Wall-Mount Chimney-Style Hood
 •   Exterior Venting & Recirculating Capabilities
 •   Optional Recirculation Kit Available
 •   Optional Extension Kit Available
  •   Optional Recirculation Filter Available

Convenience

 •  LED Bar Lighting

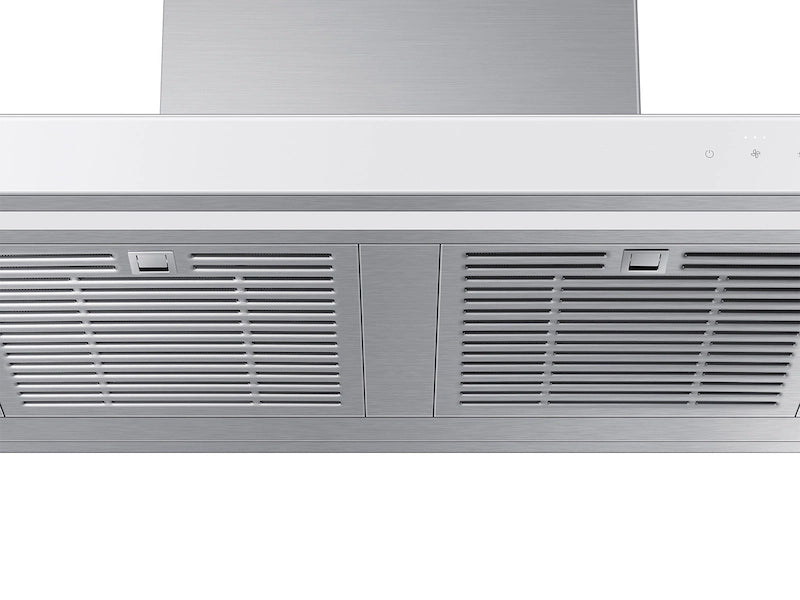

 •  Easy-to-Clean Baffle Filters
 ADA Compliant ADA

 Total Power
 210W

 Power Source
 120V / 60 Hz / 15A

 Range Hood

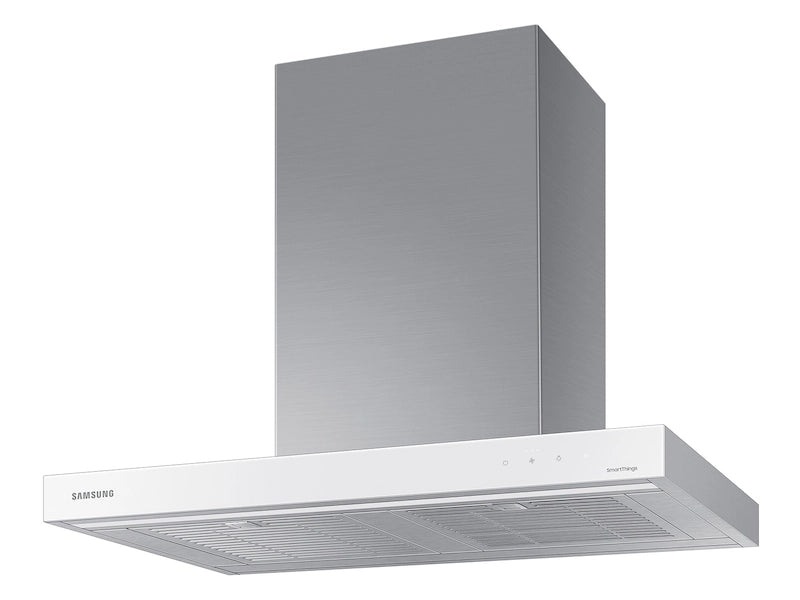

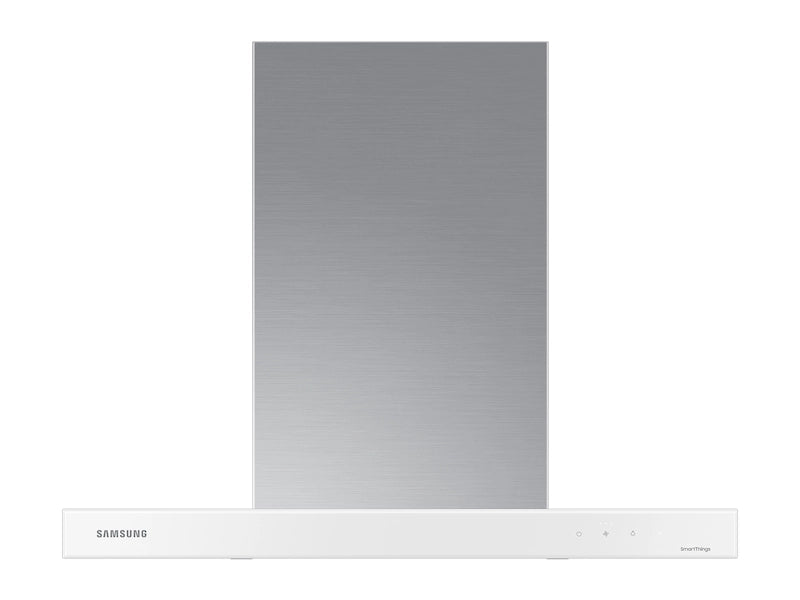

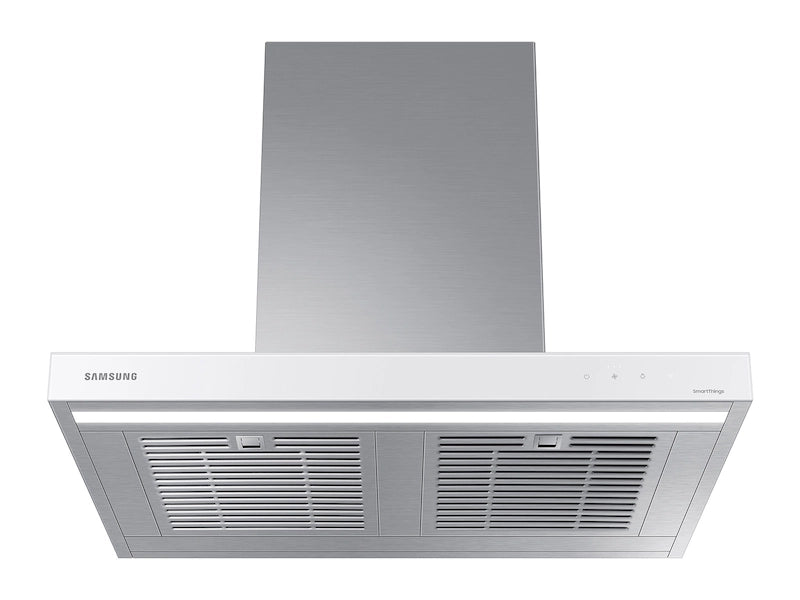

 • 30" Wall-Mount Chimney-Style Hood
 • Vent Fan: 630 CFM (Hood arrives pre-programmed to 390 CFM)
•  52 dBA (1.0 Sone) in Low Mode / 71 dBA
(7.5 Sones) in Boost Mode
 • 4 Fan Speeds, Including Booster
 • LED Display/ Touch Controls
 •  Mobile Monitoring: Fan Speed,
Lighting On/Off, Power Control
 •  Voice Control: Bixby/Google Assistant/Amazon Alexa

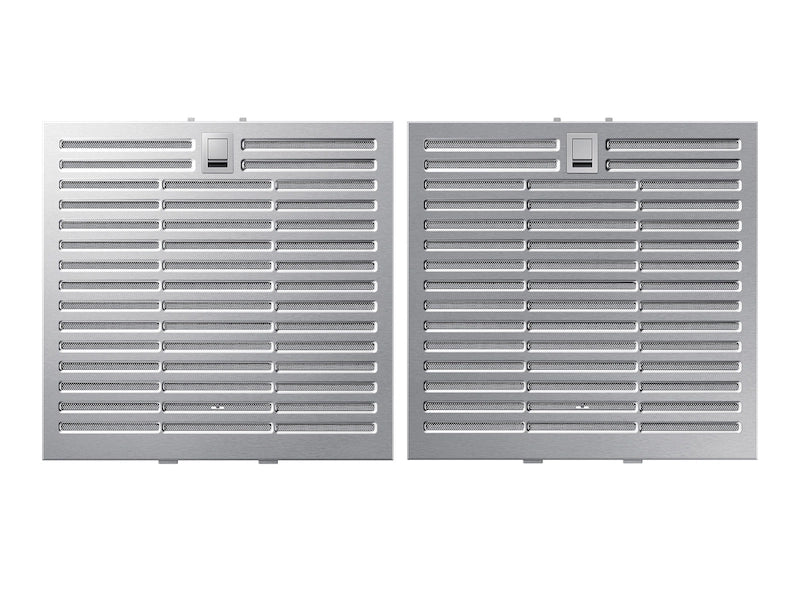

 • Removable Baffle Filters (Dishwasher safe)
 • LED Bar Lighting

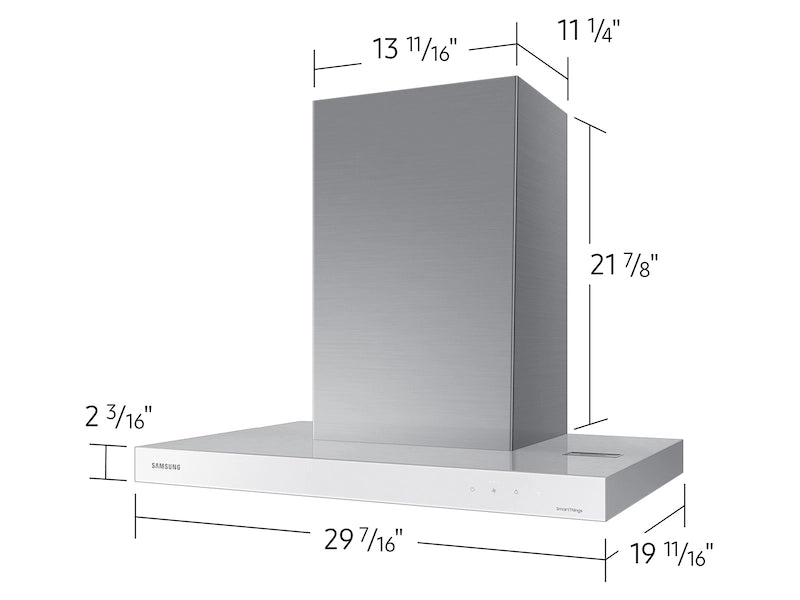

Product Dimensions & Weight (WxHxD)
 Outside (Max) Hood Dimensions:
297/16" x 257/16" x 1911/16"
 Weight: 33.3 lbs

 Shipping Dimensions & Weight (WxHxD)
 Dimensions:
333/16" x 2525/32" x 1911/16"
Weight: 57.1 lbs
